Plastic Housing On-metal RFID Tag

JYL-Tech Plastic Housing On-metal RFID Tag construction

Plastic Housing On-metal RFID Tag is an RFID tag packaged with a special anti-metal material, which technically solves the problem that the RFID tag cannot be attached to the metal surface.

It can block water, acid, alkali and collision, and can be used outdoors. Sticking anti-metal RFID tags on metal can obtain good reading performance.

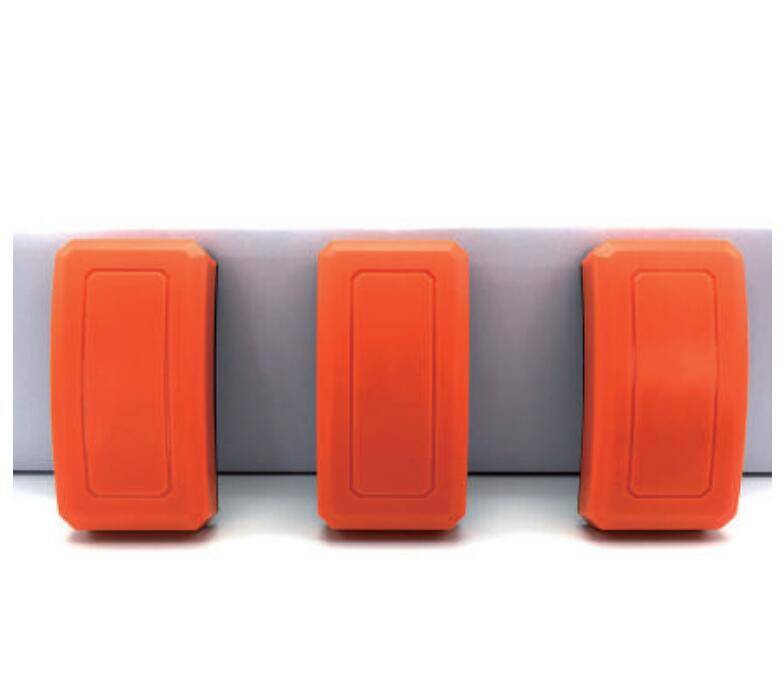

Soft Housing On-metal RFID Tag JYL-PH6232 can be used for the management of steel cylinders and gas tanks. Through RFID, the steel cylinders carrying various dangerous goods can be effectively monitored and managed, and the location, status, and annual inspection of these steel cylinders can be clearly and correctly understood, thus effectively strengthening the control of The safety of the people’s property is guaranteed, and the anti-counterfeiting and traceability of steel cylinders is realized at the same time.

Plastic Housing On-metal RFID Tag Options :

Item No. :PictureIC typeSize(mm)MaterialMounting MethodsColor Option
JYL-PH4631UHF46.5*31.5*T7.5PPSEmbedded in concreteBlack
JYL-PH5147UHF51*47*T10Engineering plasticsAdhesive, ScrewBlack
JYL-PH6923JYL-PH10530 Plastic Housing On-metal RFID TagHF/UHF69*23*T7ABS+PCAdhesive, ScrewBlack, White, Gray
JYL-PH7025UHF70*25*T6.5ABSAdhesive, Screw, bindingBlack, White, Gray
JYL-PH8030HF/UHF80*30*T10ABS+PE FoamAdhesive, Screw, bindingBlack, White, Gray
JYL-PH8520UHF85*20*T11ABSAdhesive, Screw, bindingBlack, White, Gray
JYL-PH9525UHF95*25*T5ABSAdhesive, Screw, bindingBlack, White, Gray

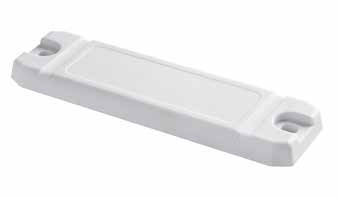

JYL-PH10530UHF105*30*T17.5ABS+PCAdhesive, Screw, bindingWhite
JYL-PH13521UHF130*21*T12.5ABS+PE FoamAdhesive, Screw, bindingBlack, White, Gray
JYL-PH15530UHF155*30*T10ABSAdhesive, Screw, bindingBlack, White, Gray
JYL-PH20030UHF200*30*T18ABSAdhesive, Screw, bindingBlack, White, Gray
IC options:

HF 13.56Mhz :
– ISO14443A: MIFARE Classic®, MIFARE® DESFire®, MIFARE Plus®, MIFARE Ultralight®, Fudan FM11RF08, etc.
– ISO18092: NTAG® 213, NTAG® 215, NTAG® 216, Topaz512, etc.
– ISO15693: NXP ICODE® SLIX, TI Tag it HF-I, ST LRI, etc.
UHF 840-960Mhz :
– Alien Higgs, Monza 3, Monza 4D, Monza 4QT, Monza R6, Monza R6-P, Impinj M730 ,Impinj M750 etc.

JYL-Tech can customize Plastic Housing On-metal RFID Tag to meet your unique requirements for chip type, size, programming and materials. Contact us to learn more about JYL-Tech full line of solutions for various On-metal RFID Tags.
